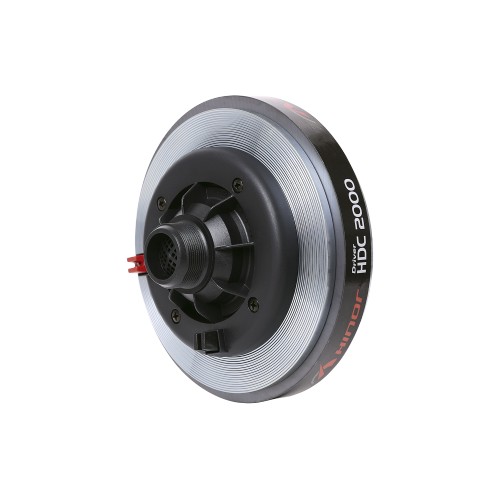

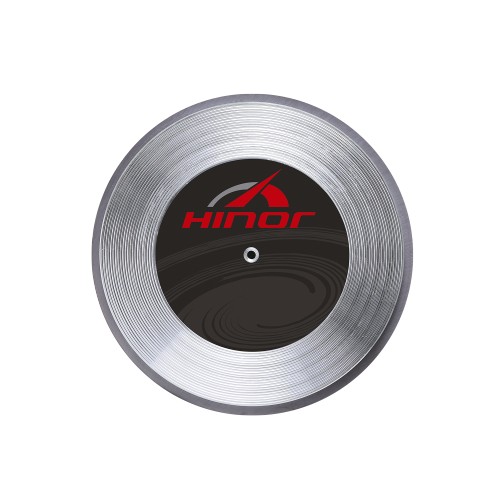

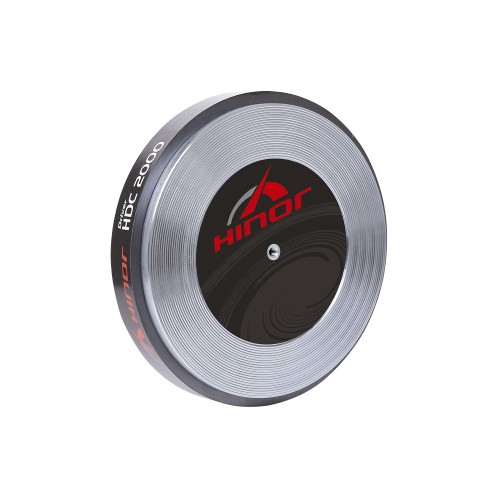

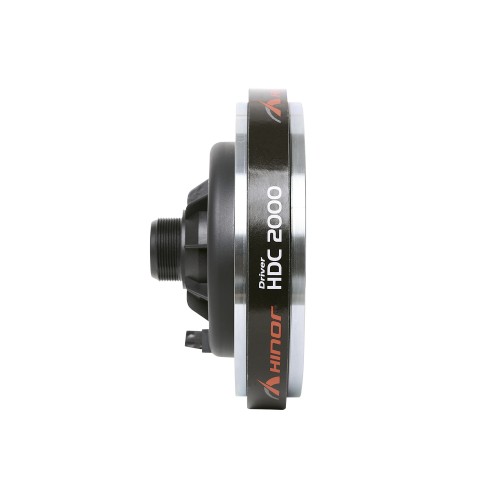

Driver Hinor - HDC 2000

Driver Hinor - HDC 2000

The hinor Batstaka HDC 2000 driver was designed for high frequencies with high quality and professional use.

+ Adicionar a lista de desejos

Product Description

The hinor Batstaka HDC 2000 driver was designed for high frequencies with high quality and SLP. Its coil and phenolic membrane are strengthened to bear demands of professional use.

Characteristic

  • Quick coupling connector;
  • Unisheet and copper wire coil, that guarantee high resistance;
  • Connection with copper-phosphorus tape that avoids the rupture of the coil wire by the sound vibrations;
  • Magnetic assembly projected by FEM software, guaranteeing high GAP flow;
  • Phenolic diaphragm.

Este produto contém reparo

Technical Specifications

Frequency (Hz@-10 dB) 400 - 9000 Hz
Cutting frequency Passa alta em 900 Hz
Music power 450 W
RMS power (with capacitor 22uF/100V) 75 W
Power RMS (with crossover 1000 Hz 12 dB/8ª) 175 W
RMS power (with crossover 2000 Hz 12 dB/8th) 225 W
Sensitivity 110 dB.W/m

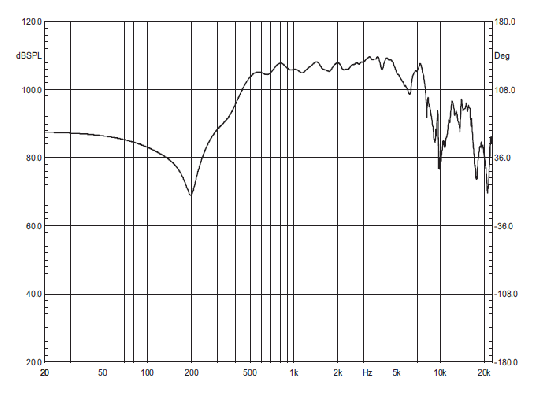

Curvas de Resposta
